- Dimensions (L x W x H): 1000W: 160 x 150 x 86mm
- Cybernetics Rating: 1000W: PLATINUM
- 80 Plus Rating: GOLD
- ATX Version: ATX 12V v3.0 and EPS v2.92
- Protections: OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
- Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM
- PFC: > 0.99
- Input Voltage: 100-240V
- Input Current: 1000W: 13A
- Input Frequency:1000
- DC Output Voltage: +5V | +3.3V | +12V | -12V | +5Vsb
- Total Output: 1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
- Power Excursion: 1000W: 2350W(*up to 235% of the PSU's rated power for 100μs)
- Operating Temperature: 50°C

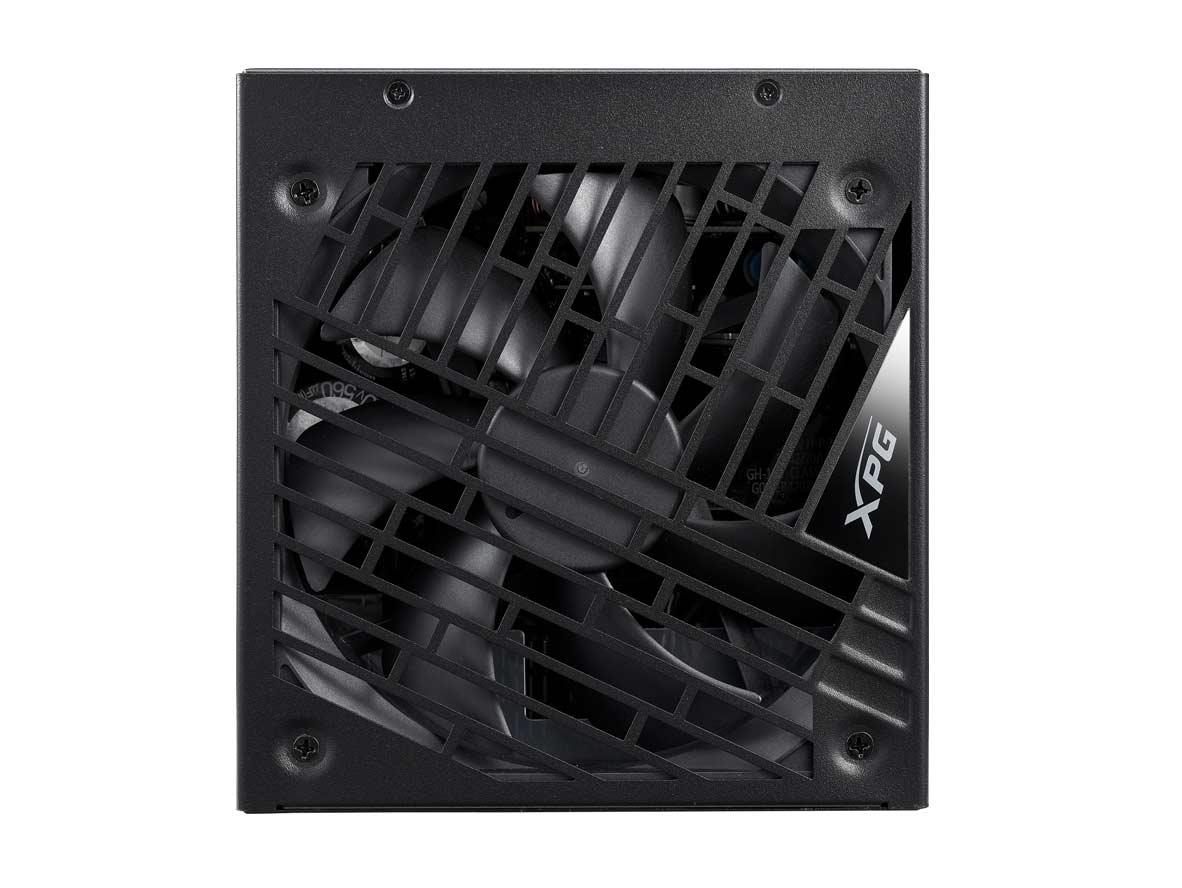

- Fan Size:1000W: 135mm FDB Fan
- Fan Bearing: FDB (Fluid Dynamic Bearing)
- Fan Speed: 2400 RPM
- MTBF: 100K hours at full load
- ATX 24 Pin Connector: 1000W:1
- PCI-E 6+2 Pin Connector:1000W:8
- Molex 4 Pin Connector:1000W:3
- 12VHPWR (12 + 4) Connector (600W): 1000W: 1
- SATA Connector: 1000W:9
