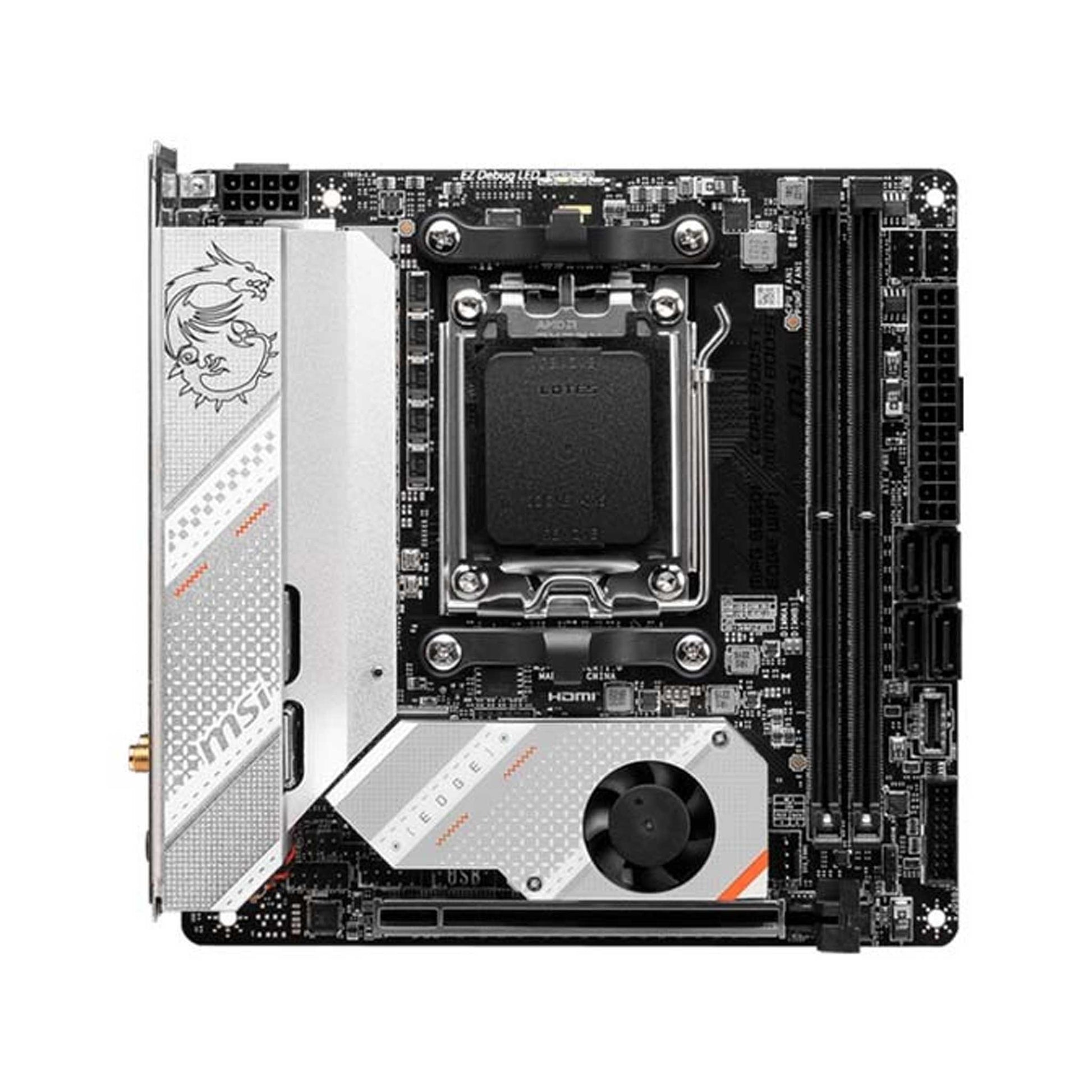

MSI - MPG B650I - EDGE WiFi DDR5 AM5 Mini-ITX Motherboard - Black

Features of AMD B650 Motherboard

• Chipset and CPU Support

  • AMD B650 chipset with AM5 socket.
  • Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.

• Memory

  • 2x DDR5 slots, up to 128GB capacity.
  • Overclocking support up to 7200+ MHz (1DPC 1R).
  • Supports dual-channel mode and AMD EXPO™.

• Graphics and Audio

  • HDMI™ 2.1 FRL port with 4K 120Hz support (with compatible CPUs).
  • Realtek® ALC4080 codec with 7.1-channel USB audio, 32-bit/384 kHz playback.

• Storage and Expansion

  • 2x PCIe 4.0 x4 M.2 slots, compatible with 2280/2260 devices.
  • 4x SATA 6G ports.
  • RAID support for SATA (0, 1, 10) and M.2 NVMe (0, 1).

• USB Ports

  • Front: 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C.
  • Rear: 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C.

• Networking

  • Realtek® RTL8125BG 2.5Gbps LAN.
  • AMD Wi-Fi 6E with MU-MIMO and Bluetooth® 5.3.

• Internal IO

  • Multiple connectors for fans, RGB, TPM, audio, and USB.

• LED Features

  • 4x EZ Debug LEDs for diagnostics.

• Back Panel Ports

  • HDMI™, 2.5G LAN, audio jacks, Clear CMOS, Flash BIOS, USB ports (5Gbps, 10Gbps, 20Gbps).

• Form Factor

  • Mini-ITX (170mm x 170mm), optimized for compact builds.

• Operating System Support

  • Compatible with Windows® 11 and Windows® 10 64-bit.
