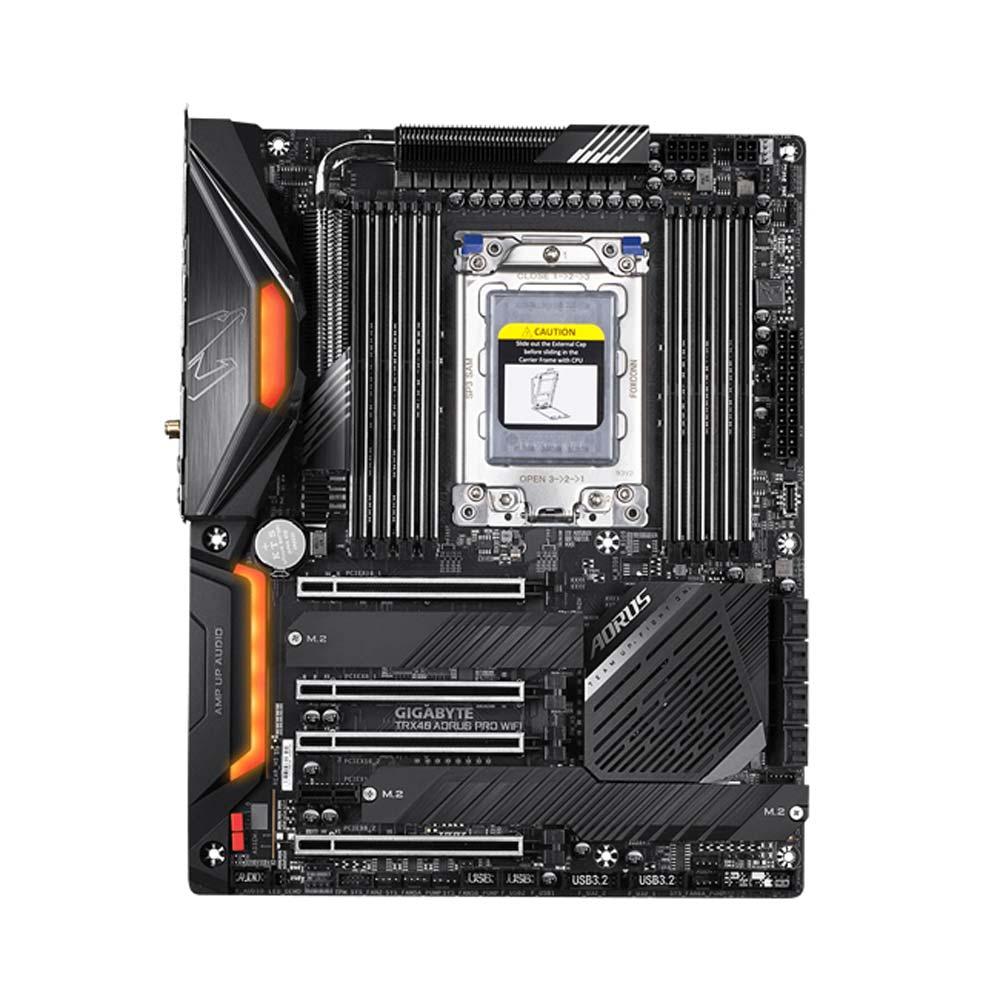

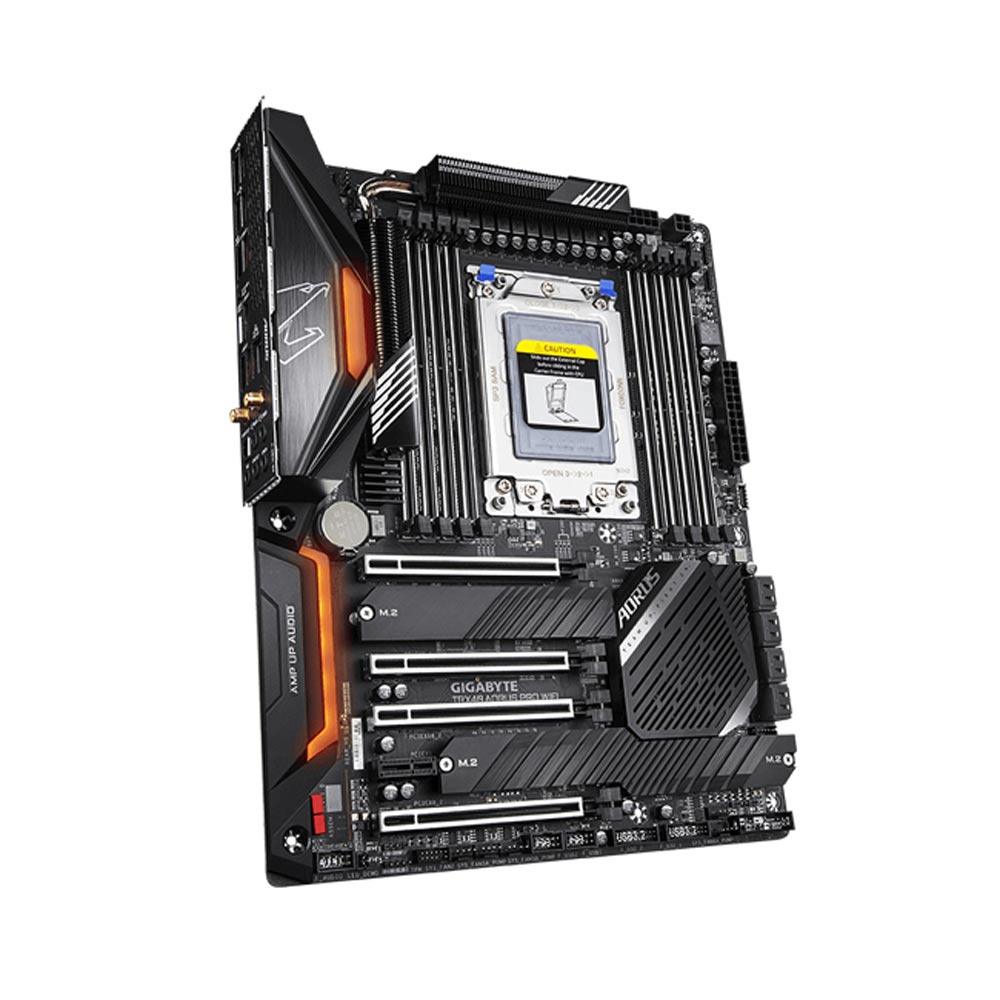

TRX40 AORUS PRO WIFI (rev. 1.0)

AMD TRX40 AORUS Motherboard with Direct 12+2 Phases Infineon Digital VRM, Fins-Array Heatsink, Intel^® GbE LAN, 3 PCIe 4.0 M.2 with Thermal Guards, Intel^® WiFi 6 802.11ax, ALC 1220-VB Audio, RGB FUSION 2.0

DESIGN CONCEPT WINGS OF EXCELLENCE

The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS Core takes inspiration from the falcon’s aerodynamic wings, incorporating a multi-layered design which features wing shaped contours and also resembles the falcon’s high velocity ascension and dive through the skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its futuristic style.

ULTIMATE POWER DESIGN

To unleash the full potential of the 3rd Generation AMD Ryzen™ Threadripper™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, TRX40 AORUS PRO WIFI is a true beast among motherboards.

ADVANCED THERMAL DESIGN

TRX40 AORUS PRO WIFI reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink with pipe to provide lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.

ULTIMATE PERFORMANCE

TRX40 AORUS PRO WIFI pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 Ready PCB, PCIe 4.0 Slots, PCIe 4.0 M.2 Connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. TRX40 AORUS PRO WIFI provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

AORUS AESTHETICS

TRX40 AORUS PRO WIFI features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

Specifications

• CPU
1. AMD Socket sTRX4:
   Support 3rd Generation AMD Ryzen™ Threadripper™ processors

(Please refer "CPU Support List" for more information.)

• Chipset
1. AMD TRX40
• Memory
1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
2. Quad Channel memory architecture
3. Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

• Audio
1. Realtek^® ALC4050H codec+ ALC1220-VB codec
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out
• LAN
1. Intel^® GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication module

Intel^® Wi-Fi 6 AX200

1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
3. 1 x PCI Express x1 slot
   (All of the PCI Express slots conform to PCI Express 4.0 standard.)
• Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
2. Support for NVIDIA^® Quad-GPU SLI™ and3-Way/2-Way NVIDIA^® SLI™ technologies
• Storage Interface

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
2. 8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

• USB

CPU:

1. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

Chipset:

1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2. 1 x USB Type-C™ port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header
3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 4 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 8 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C™ header, with USB 3.2 Gen 1/Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x GIGABYTE add-in card connector
18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
19. 2 x temperature sensor headers
20. 1 x Clear CMOS jumper

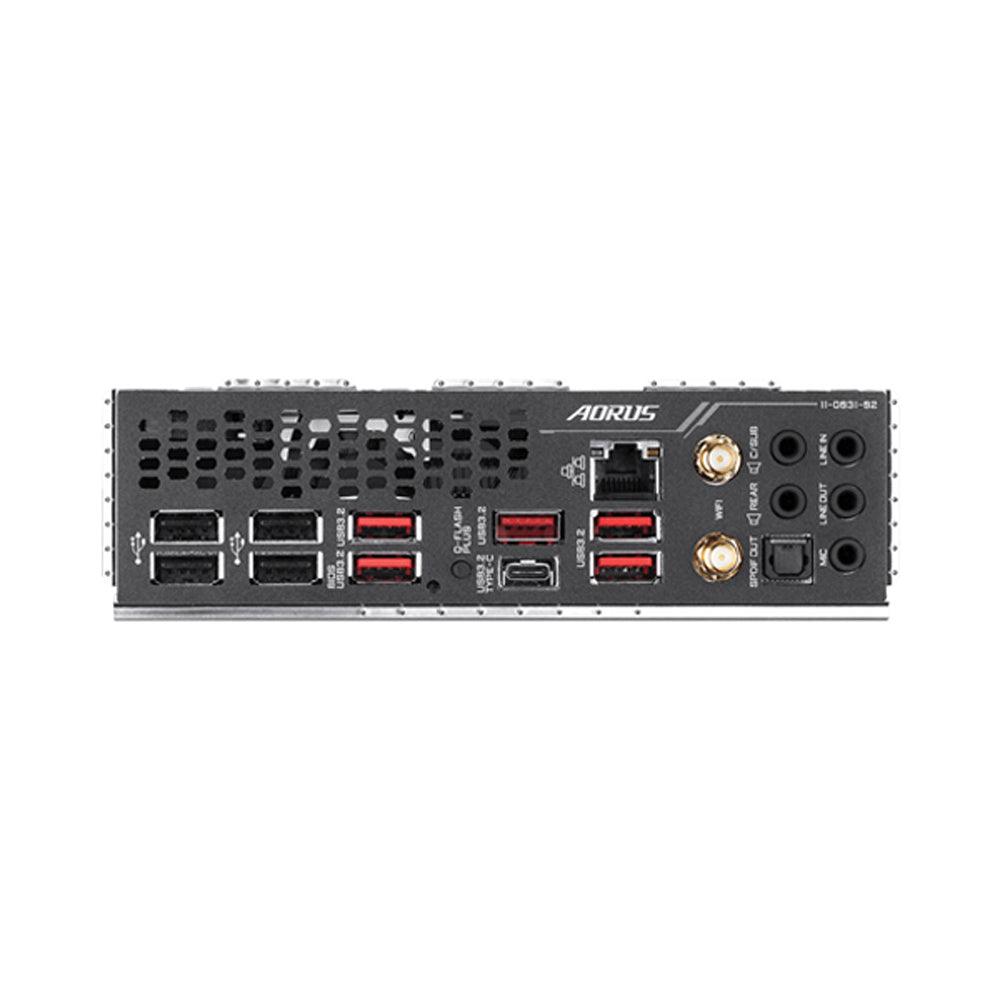

• Back Panel Connectors
1. 4 x USB 2.0/1.1 ports
2. 1 x Q-Flash Plus button
3. 5 x USB 3.2 Gen 2 Type-A ports (red)
4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
5. 1 x RJ-45 port
6. 2 x SMA antenna connectors (2T2R)
7. 1 x optical S/PDIF Out connector
8. 5 x audio jacks
• I/O Controller
1. iTE^® I/O Controller Chip
• H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Overheating warning
6. Fan fail warning
7. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart Survey
   System Information Viewer
   USB Blocker
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
• Bundled Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
3. XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
1. Support for Windows 10 64-bit
• Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
