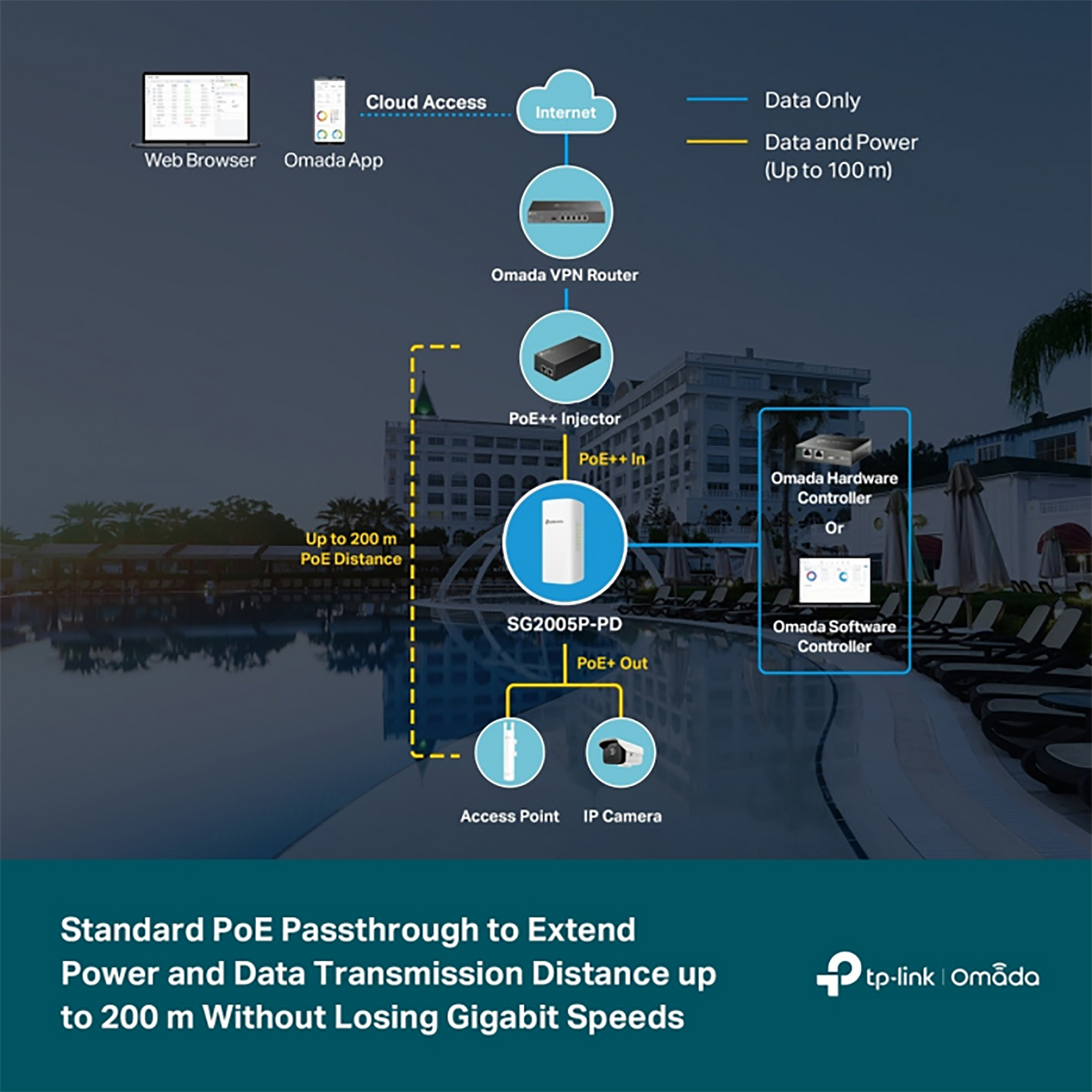

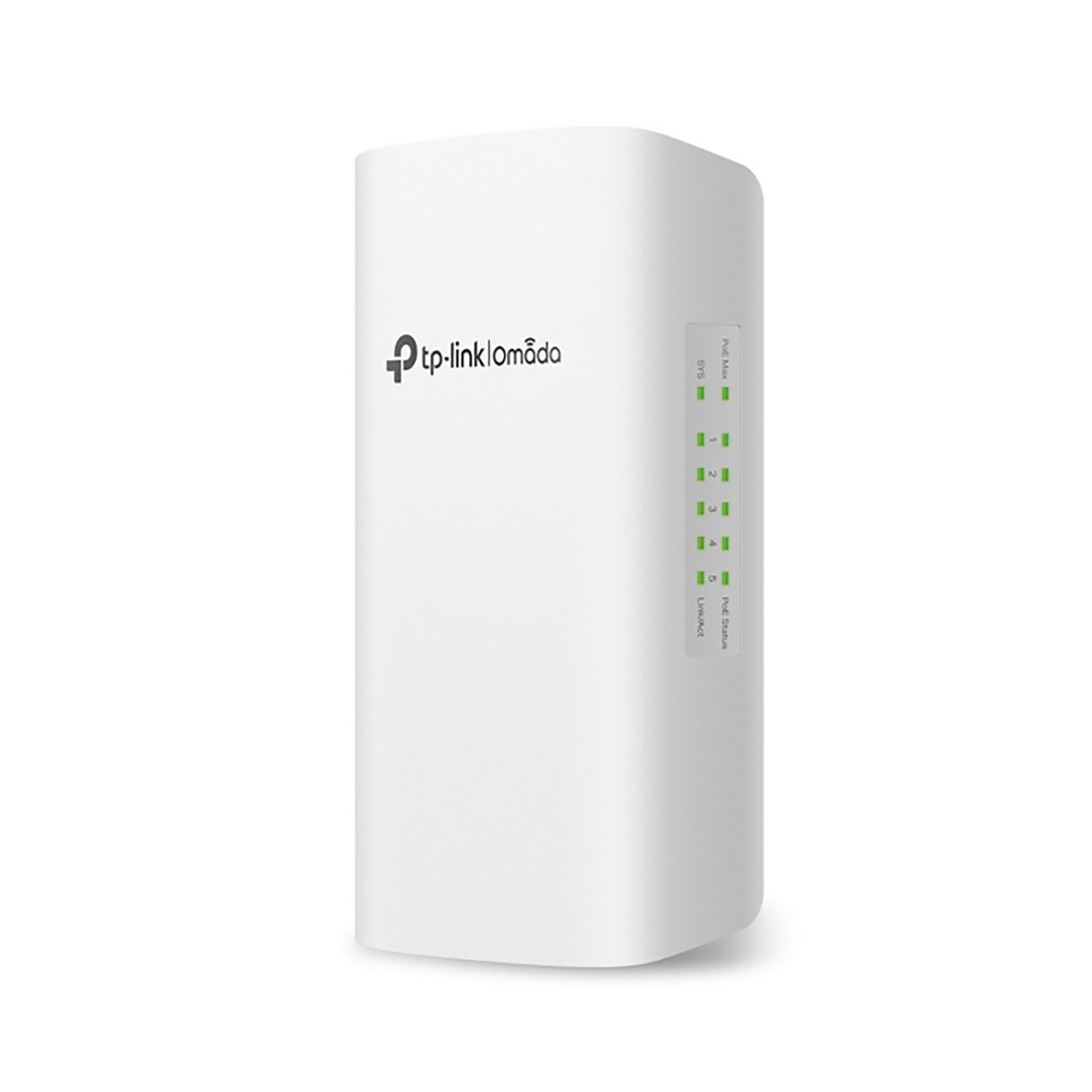

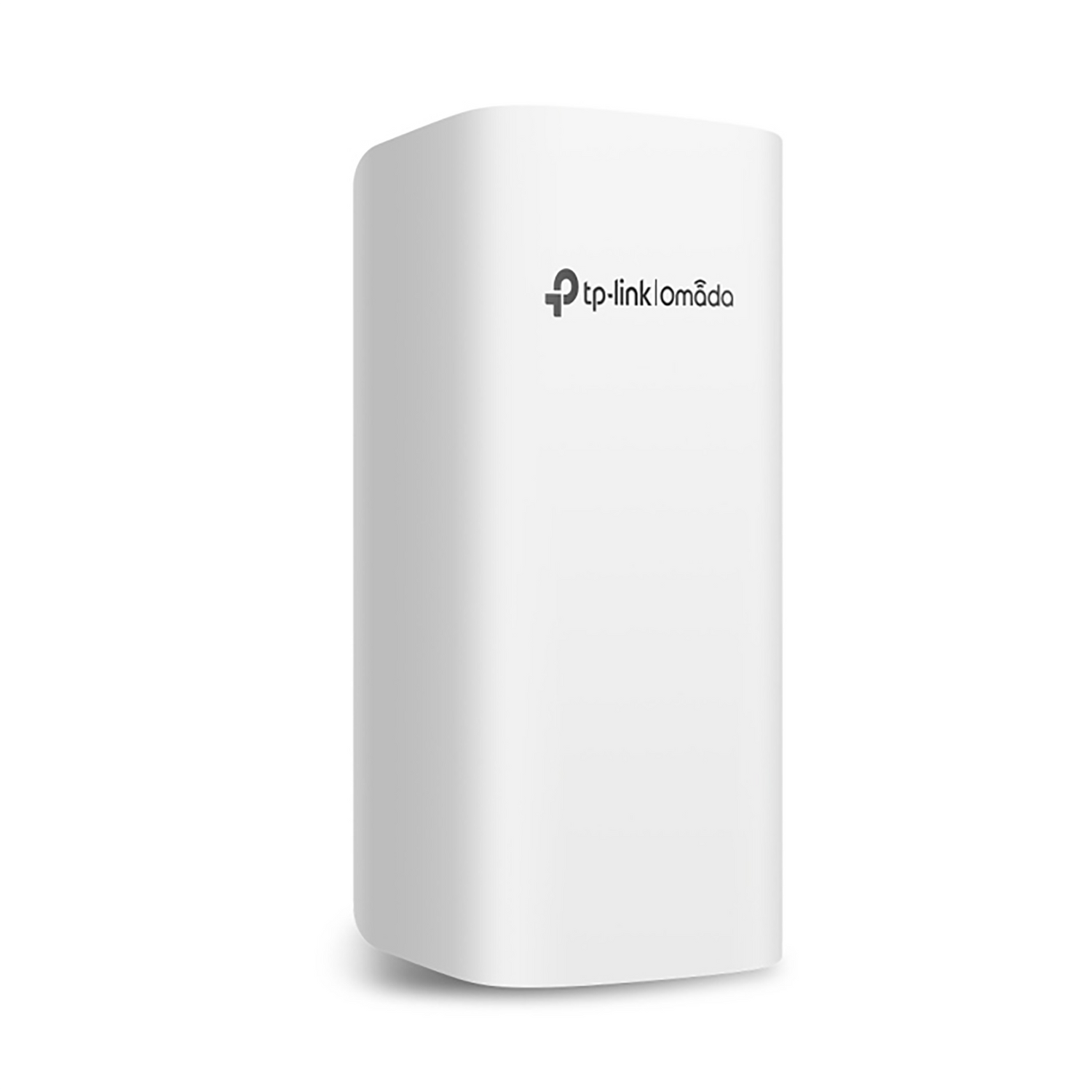

TP-Link Omada 5 - Port Gigabit Smart Switch with 1 - Port PoE++ In and 4 - Port PoE + Out

SKU: SG2005P-PD  |  Model Number: NS026975
32.500 KD
Brand
Color

Free Delivery

Return within 14 days of purchase.

  • Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x

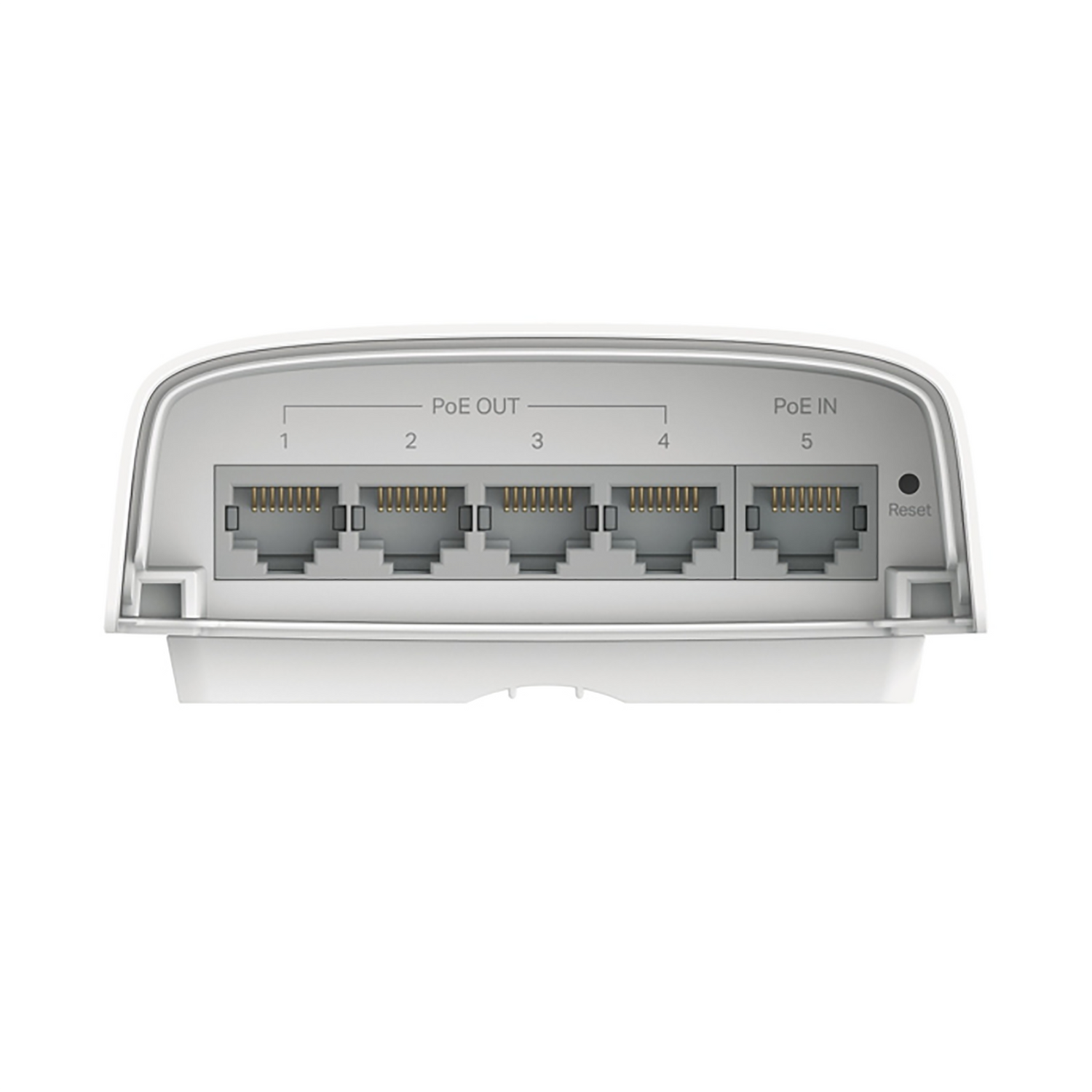

  • Interface: 1× 10/100/1000 Mbps RJ45 PoE In Port (802.3af/at/bt), 4× 10/100/1000 Mbps RJ45 PoE Out Ports (802.3af/at)
  • Network Media: 10BASE-T (Cat 3, 4, 5, max 100m), 100BASE-TX/1000Base-T (Cat 5, 5e, or above, max 100m)
  • Fan Quantity: Fanless
  • Power Supply: Powered via 802.3af/at/bt PoE source
  • PoE Ports: 1 PoE In (802.3af/at/bt), 4 PoE Out (802.3af/at); Power budget: 64 W (802.3bt Type 4), 44 W (802.3bt Type 3), 19 W (802.3at), 6 W (802.3af)
  • Dimensions: 3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)
  • Max Power Consumption: 71.5 W (802.3bt Type 4)
  • Max Heat Dissipation: 243.99 BTU/h (802.3bt Type 4)
  • Switching Capacity: 10 Gbps
  • Packet Forwarding Rate: 7.44 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB
  • QoS: 802.1p CoS/DSCP, 8 priority queues, SP/WRR, bandwidth control, storm control
  • L2 and L2+ Features: Static and dynamic routing, IPv4/IPv6 support, DHCP server/relay, static and proxy ARP, link aggregation, spanning tree, loopback detection, port/CPU mirroring
  • L2 Multicast: IGMP/MLD snooping, multicast VLAN registration, filtering, static group config
  • Advanced Features: Auto device discovery, batch configuration, network monitoring, reboot scheduling
  • IPv6 Support: Dual stack, MLD snooping, ND, DHCPv6, ICMPv6, IPv6 SNMP/SSH/SSL
  • VLAN: Max 4K VLANs, 802.1Q tagging, MAC VLAN, protocol VLAN, voice VLAN
  • Access Control List: Time-based, MAC/IP/IPv6 ACL, permit/deny rules, QoS remark
  • Security: AAA, 802.1X, IP/IPv6-MAC binding, DoS protection, port security, storm control, isolation
  • MIBs: Standard and private MIBs, RMON groups
  • Omada App: Supports Omada Cloud-Based, Hardware, and Software Controllers
  • Management Features: Web-based GUI, CLI, SNMPv1/v2c/v3, RMON, DHCP client, dual image/configuration, cable diagnostics, SNTP, system log
  • Certification: CE, FCC, RoHS
  • Package Contents: SG2005P-PD, mounting kits, installation guide
  • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
  • Environment: Operating: -40 to 60 °C (-40 to 140 °F), Storage: -40 to 70 °C (-40 to 158 °F), Humidity: 10–90% (operating), 5–90% (storage)
