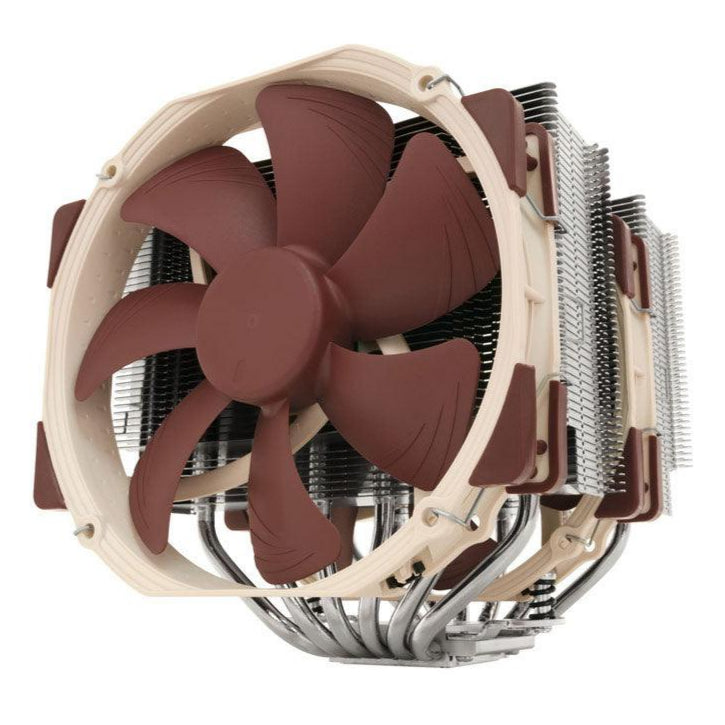

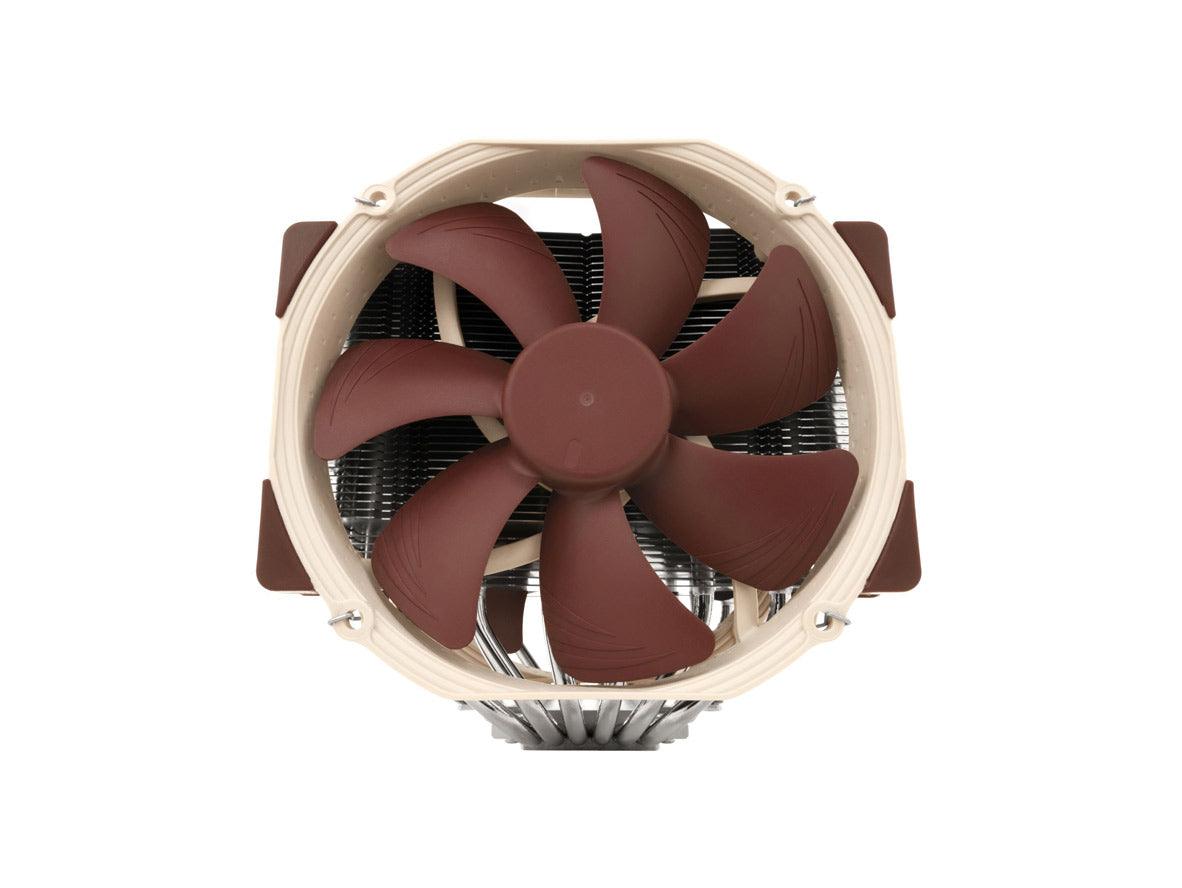

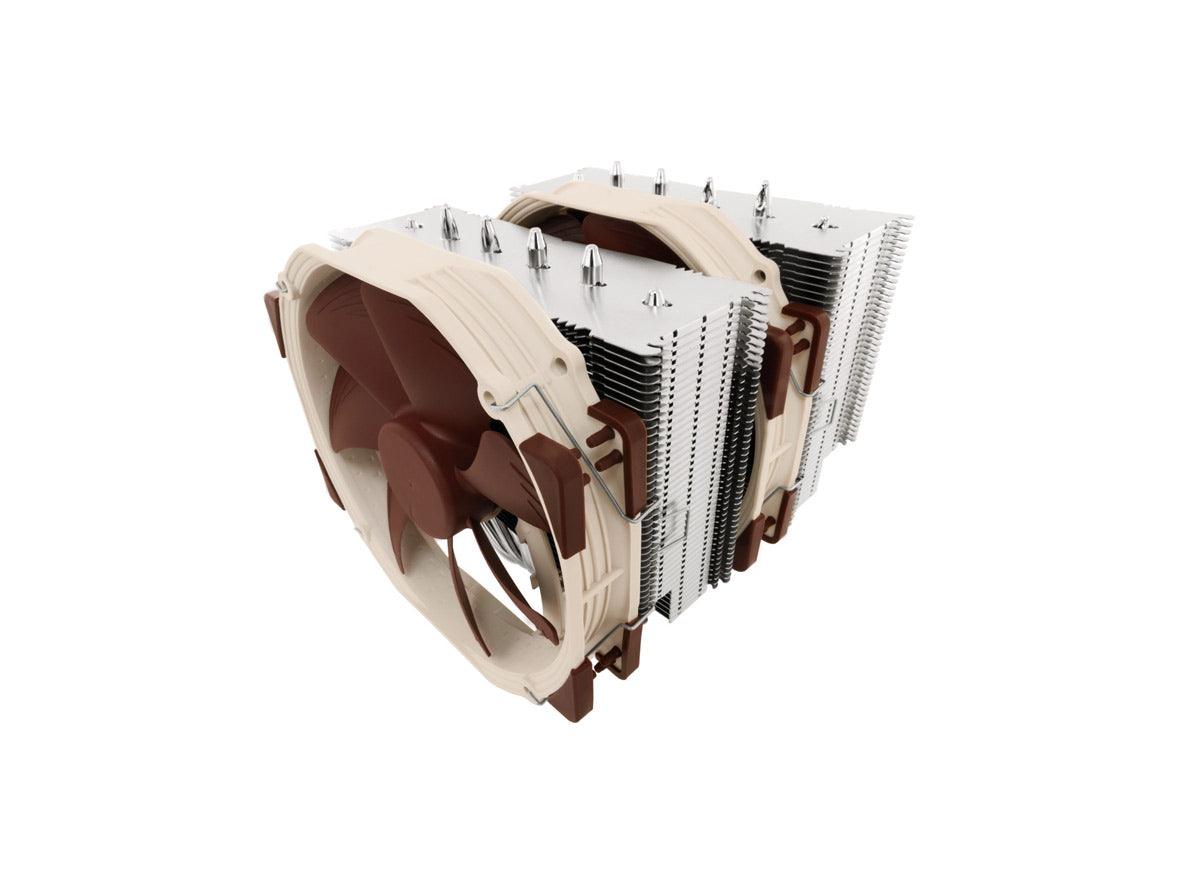

NOCTUA NH-D15 140mm PWM Premium Dual Tower Air CPU Cooler - Brown

• State-of-the-art dual-tower design with 6 heatpipes and 2 fans provides class-leading cooling performance for overclocking or near-silent systems

• Successor of the classic NH-D14; more than 250 awards and recommendations from leading international hardware websites and magazines

• 2 highly optimised NF-A15 140mm fans with PWM support and Low-Noise Adaptors for automatic speed control and ultra-quiet operation

• Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1700 (LGA17xx family) LGA1200, LGA115x, LGA2011, LGA2066 and AMD AM4 & AM5

• Renowned Noctua quality - deluxe choice for Intel Core i9, i7, i5, i3 (e.g. 13900, 13700, 13600) and AMD Ryzen (e.g. 7950X3D, 7900X3D, 7800X3D, 7700)

NOCTUA NH-D15 - 140mm PWM Premium Dual Tower CPU Air Cooler - Brown

Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua’s flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14’s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.

Specifications

Cooler

• Socket compatibility : Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0, LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)

• Height (without fan) : 160 mm

• Width (without fan) : 150 mm

• Depth (without fan) : 135 mm

• Weight (without fan) : 980 g

• Height (with fan) : 165 mm

• Width (with fan) : 150 mm

• Depth (with fan) : 161 mm

• Weight (with fan) : 1320 g

• Material : Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

• NSPR : 183

• Max. TDP : see NSPR

• Fan compatibility : 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

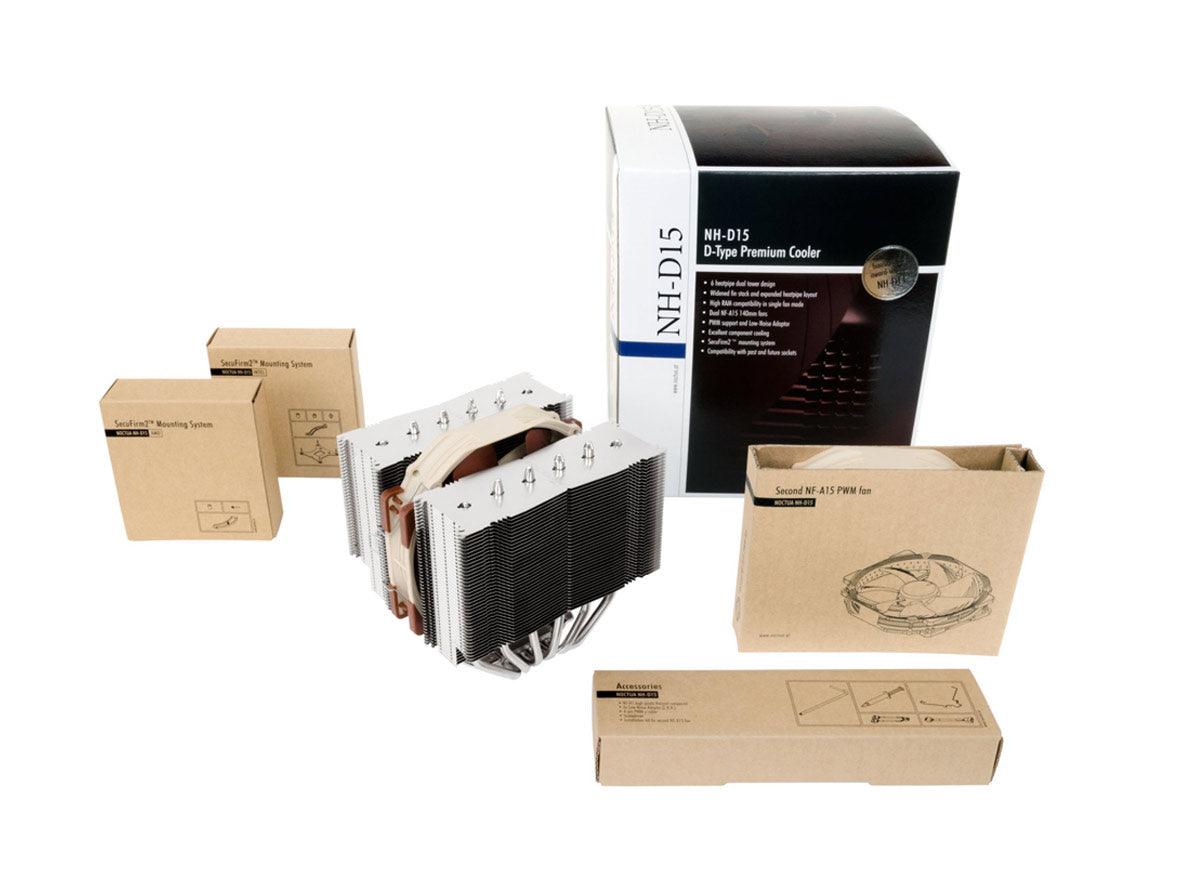

• Scope of delivery : 2x NF-A15 PWM premium fan

                                                2x Low-Noise Adaptor (L.N.A.)

                                                Y-cable

                                                NT-H1 high-grade thermal compound

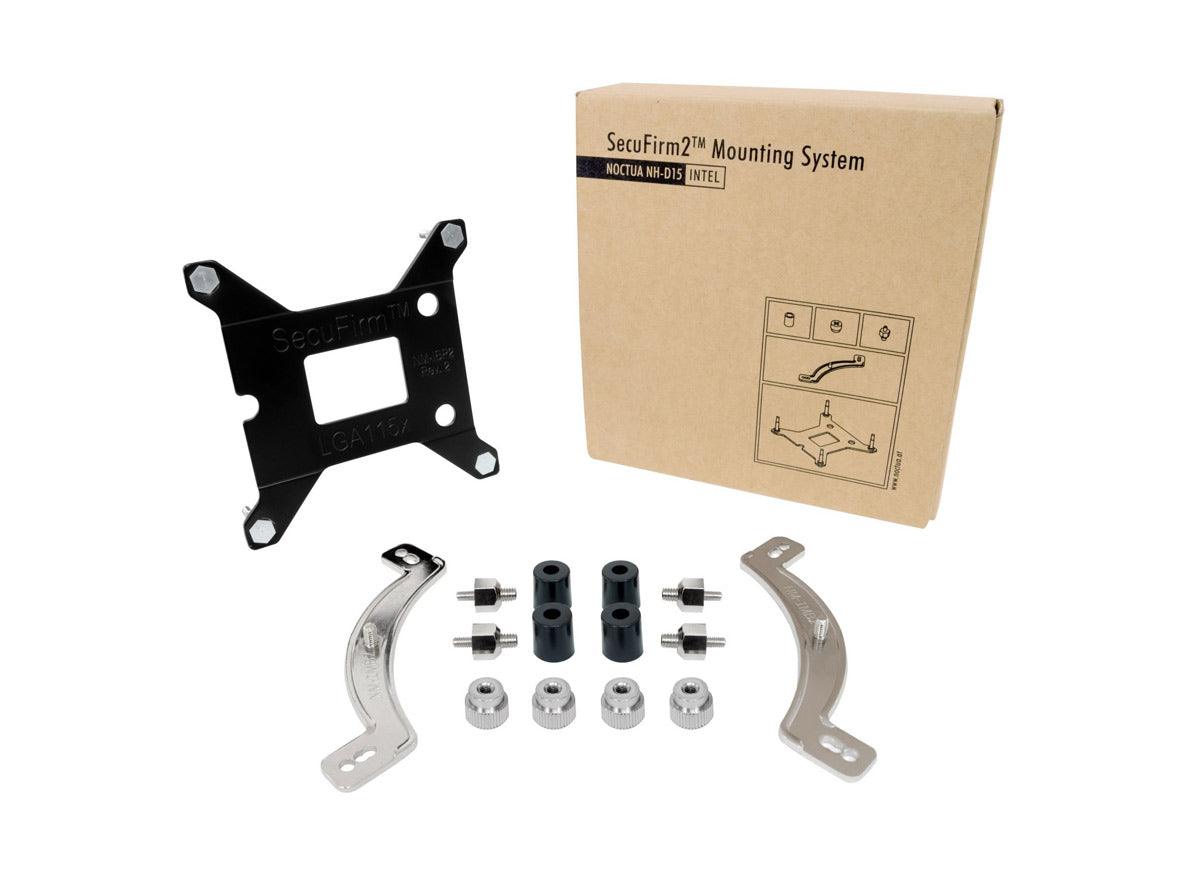

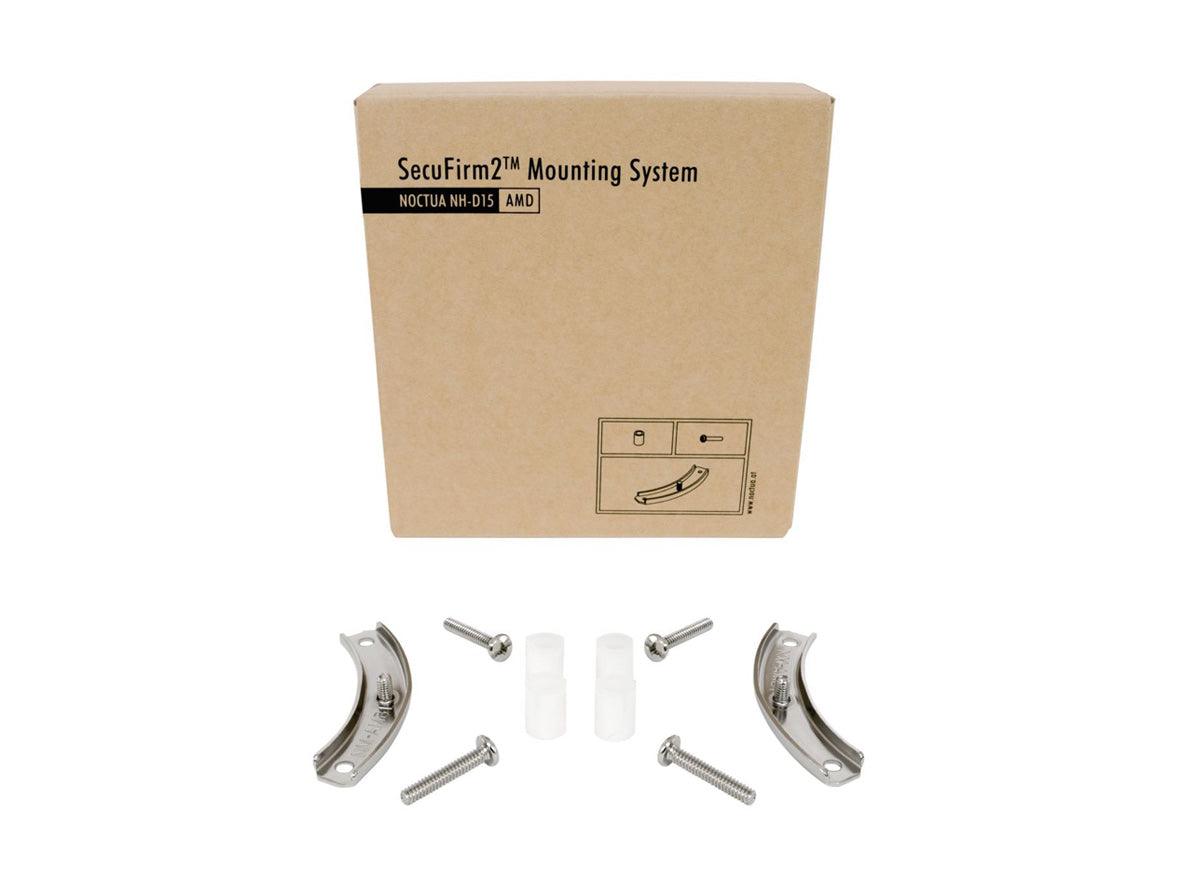

                                                SecuFirm2™ Mounting Kit

                                                Noctua Metal Case-Badge

Fan

• Model : 2x Noctua NF-A15 PWM

• Bearing : SSO2

• Max. rotational speed (+/- 10%) : 1500 RPM

• Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM

• Min. rotational speed @ 20% PWM (+/-20%) : 300 RPM

• Max. airflow : 140,2 m³/h

• Max. airflow with L.N.A. : 115,5 m³/h

• Max. acoustical noise : 24,6 dB(A)

• Max. acoustical noise with L.N.A. : 19,2 dB(A)

• Voltage range : 12 V

• MTTF : > 150.000 h
