Fan Specifications
- Dimensions: 120 x 120 x 120 x 25 mm
- Speed: 500±100~2000±10% RPM
- Type of bearing: Water bearing
- Rated voltage (fan): DC 12.0V
- Rated current (fan): 0.28A
- Power Consumption (fan): 3.36W
- Rated voltage (lights): 5.0V DC
- Rated current (lights): 0.36A (max)
- Power Consumption (Lights): 1.8W
- Airflow: 57.5 CFM
- Air pressure: 1.8 mm H2O
- Noise: 34 dB(A)
- Lifespan: 20,000 hours at 25°C
- ARGB connector: SM2.54-3Pin (female) to SM2.54-3Pin (male)
- Power connector: 2510-4Pin (female) to 2510-4Pin (male)

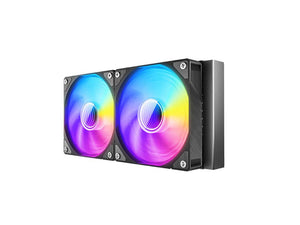

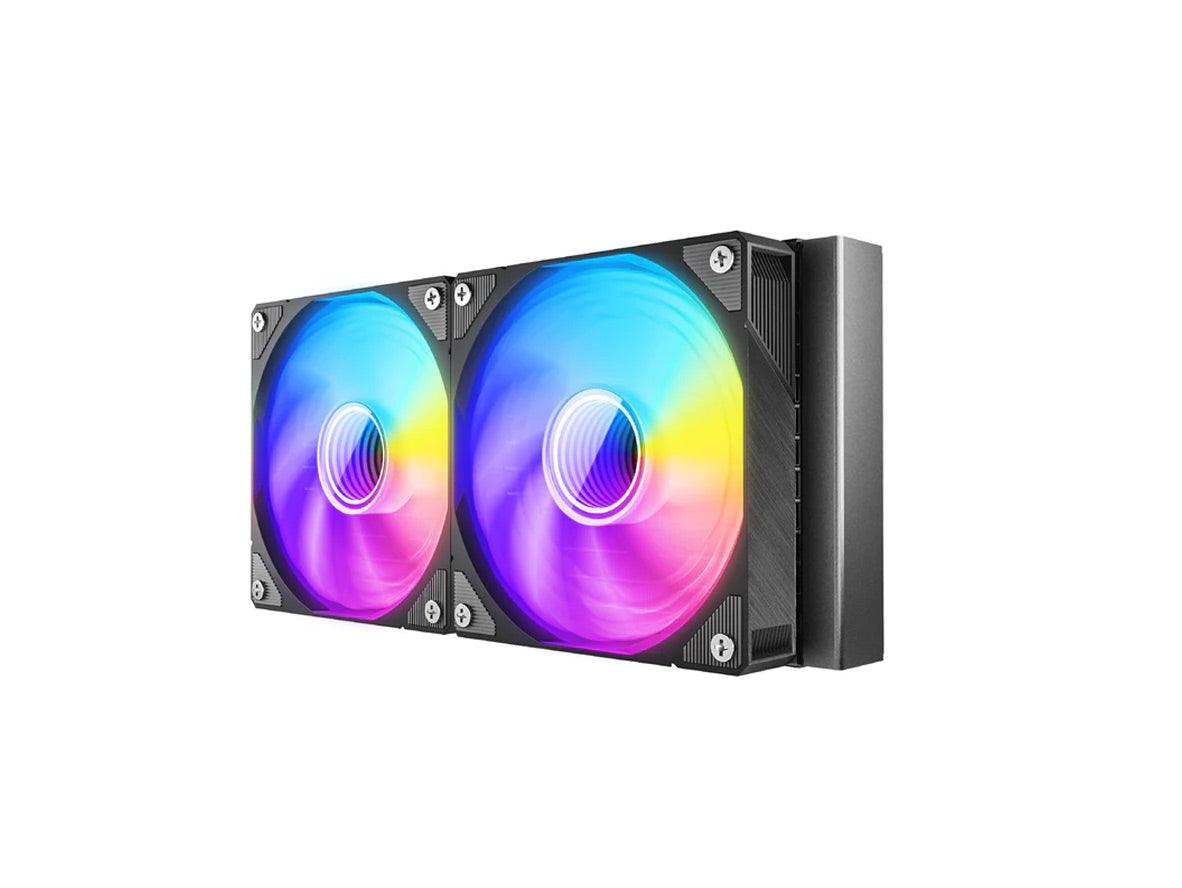

- Radiator Specifications
- Dimensions: 286 x 121 x 35.0 mm
- Material: Aluminum alloy
Water Block Specifications
- Dimensions: 71.5 x 82.3 x 52.3 mm
- ARGB connector: 5V ADD-HEADER (female) to ADD-
- Rated voltage (lights): 5.0V DC
- Rated current (lights): 0.72A (max)
- Power Consumption (Lights): 3.6W
Pump Specifications
- Type: Built-in radiator pump
- Connector: 2510-3Pin
- Bearing type: Zirconia Ceramic Bearings
- Rated voltage: DC 12.0V
- Rated current: 0.4A
- Power consumption: 4.8W
- Speed: 4000±10% RPM
- Water pressure: 1.3 ml
- Flow rate: 120 liters/hour
- Motor type: Three-phase brushless DC motor
- Lifespan: 50,000 hours
- Noise: Less than 25 dB(A)
Tube Specifications
- Dimensions: 400 mm
- Material: EPDM + rayon mesh
Compatibility
- Intel Sockets: LGA115X / LGA1366 / LGA1200 / LGA1700 / LGA1851
- AMD Sockets
