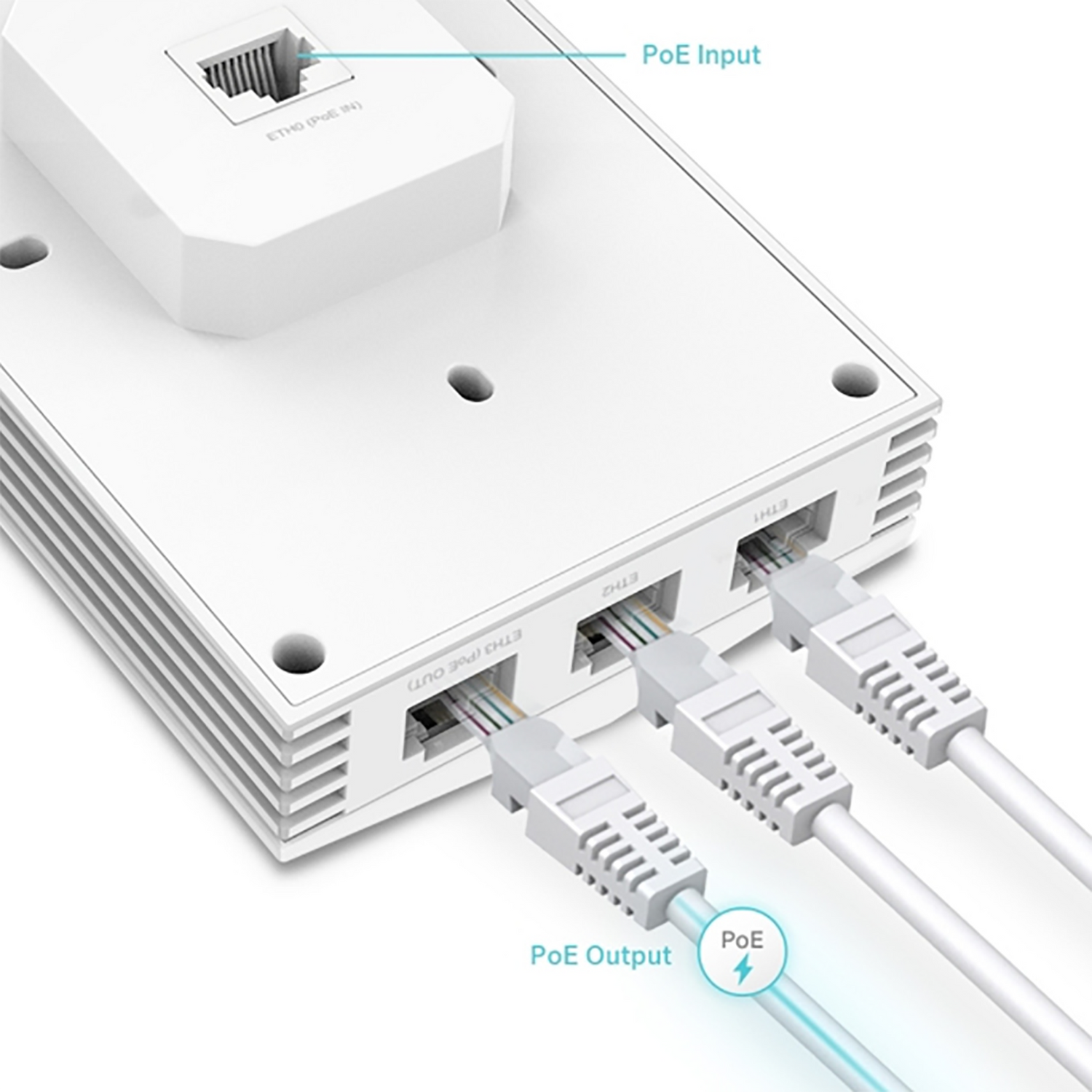

- Interface: 1× Gigabit Uplink, 3× Gigabit Downlink (1 PoE out, requires 802.3at PoE+)
- Button: Reset, LED
- Power Supply: 802.3af/at PoE
- Power Consumption: EU: 12W, US: 12.6W (PoE Out off)
- Antenna: 2 Dual-Band (2.4 GHz: 2× 3 dBi, 5 GHz: 2× 5 dBi)

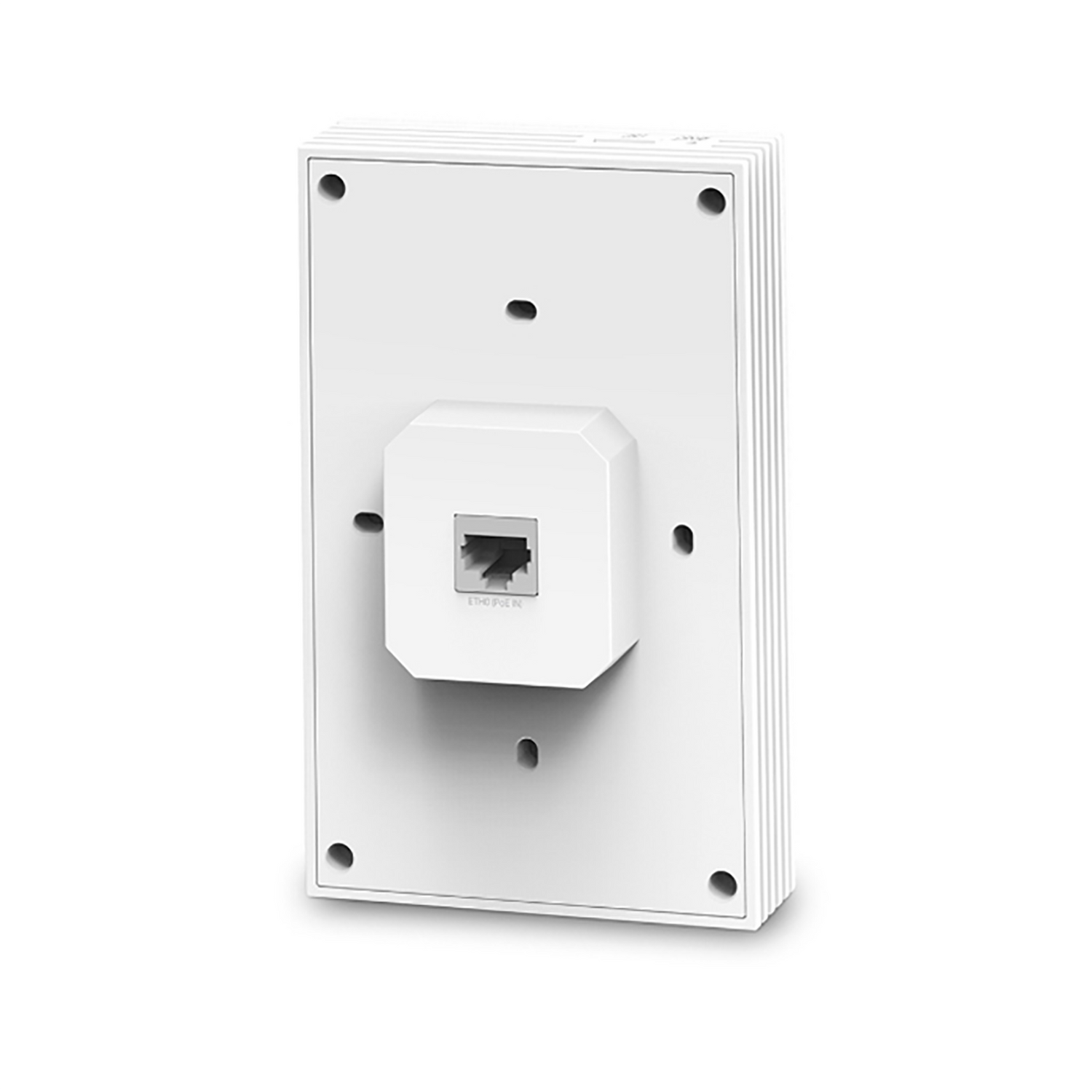

- Mounting: Wall Plate (86 mm & EU/US standard junction box)
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz & 5 GHz
- Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
- Wireless Features: 16 SSIDs, MU-MIMO, Beamforming, Band Steering, Seamless Roaming, QoS (WMM), Rate Limit, Load Balance, Airtime Fairness, Wireless Schedule
- Transmission Power (CE): <20 dBm (2.4 GHz), <23 dBm (5 GHz Band1/2), <26 dBm (5 GHz Band3)
- Transmission Power (FCC): <21 dBm (2.4 GHz & 5 GHz)
- System Requirements: Windows XP/Vista/7/8/10/11, Linux
- Special Features: Blazing-Fast AX3000 WiFi 6 Speeds (574 Mbps + 2402 Mbps = 2976 Mbps), PoE pass-through, Secure Guest Network, Omada SDN Management
- Dimensions: 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
- Package Contents: EAP655-Wall, Installation Guide, Mounting Kits
