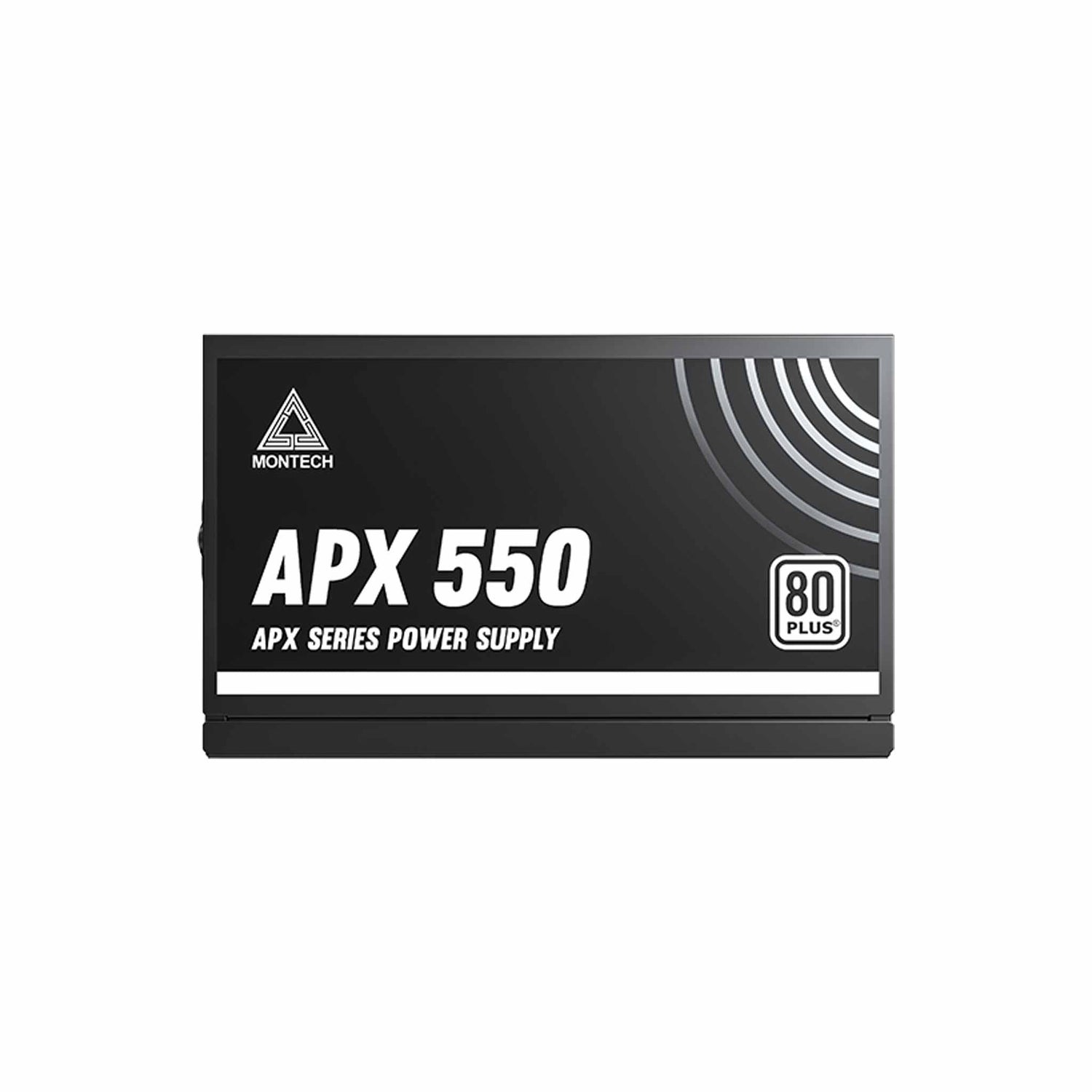

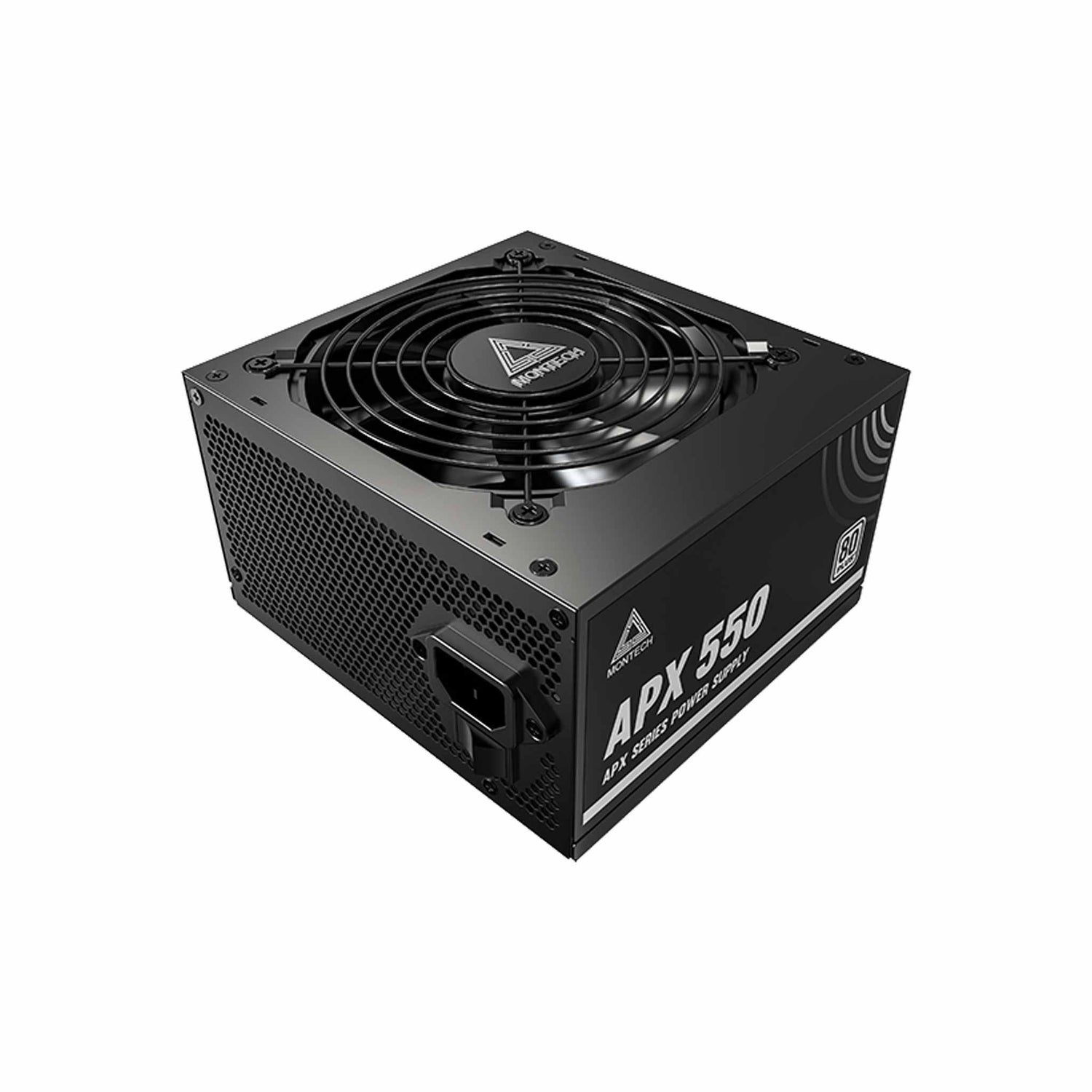

- Product Name: APX 550W
- ATX Version: Intel ATX12V
- PFC: Active PFC
- Input Voltage: 100-240V AC
- Input Current: 12A
- Input Frequency: 50-60Hz
- Dimensions: 150 x 140 x 86 mm

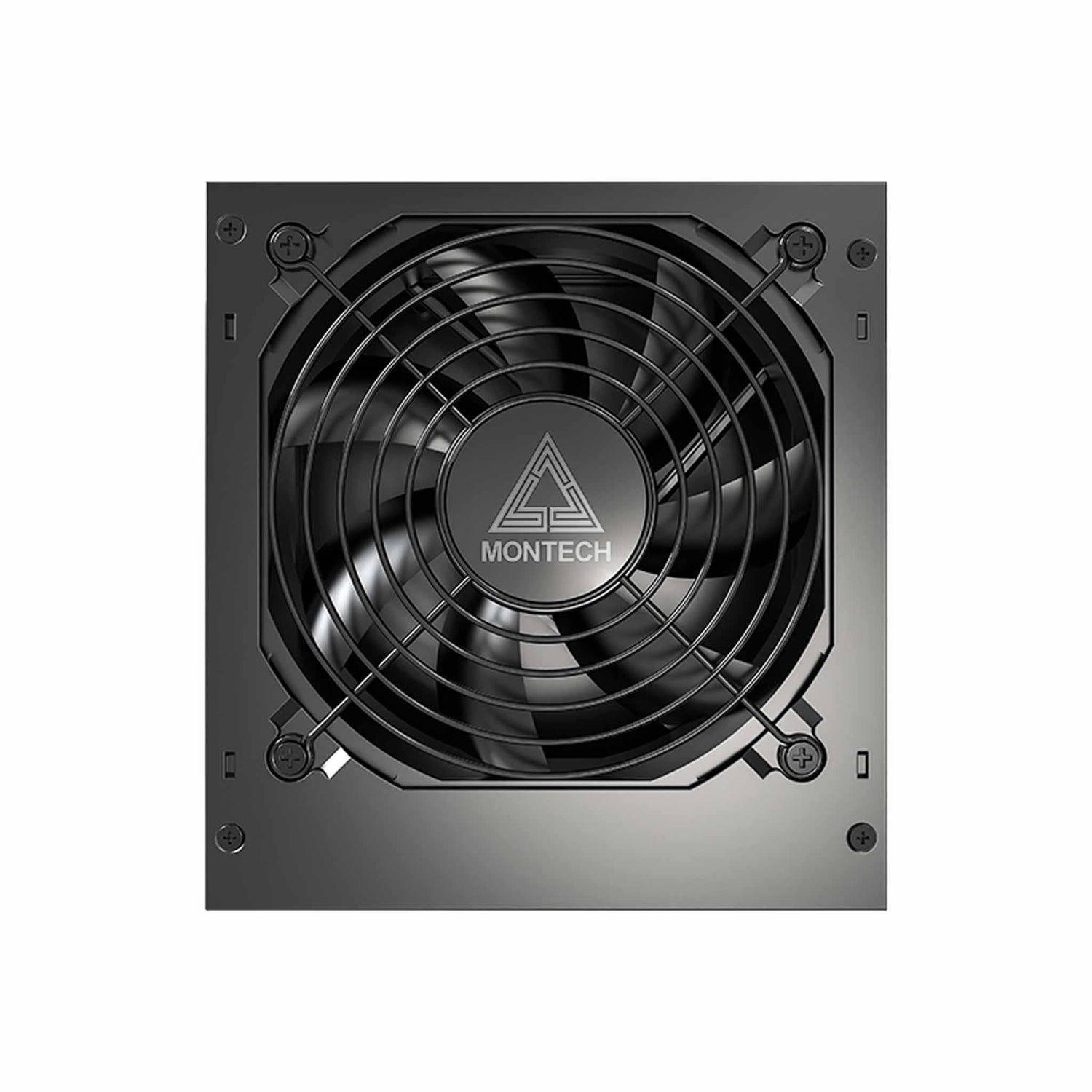

- Fan Size: 120 mm
- Efficiency: 80% (Typically)
- Operating Temperature: 0-45°C
- Protections: OVP, OPP, OTP, SCP, OCP, UVP
- Regulatory Compliance: cTUVus, TUV, CB, CE, RoHS, FCC-ICES, EAC, RCM, BSMI
Connectors:
- M/B 20+4 Pin: 1
- CPU 4+4 Pin: 2
- PCIe 6+2 Pin: 2
- SATA: 6
- Molex 4 Pin: 3
AC Input: 100-240V AC, 50-60Hz, 12A MAX
DC Output and Power:
- +3.3V: 18A, Max 100W
- +5V: 18A, Max 100W
- +12V: 45.8A, Max 549.6W
- -12V: 0.3A, Max 3.6W
- +5VSB: 2.5A, Max 12.5W
- Total Power: 550W
